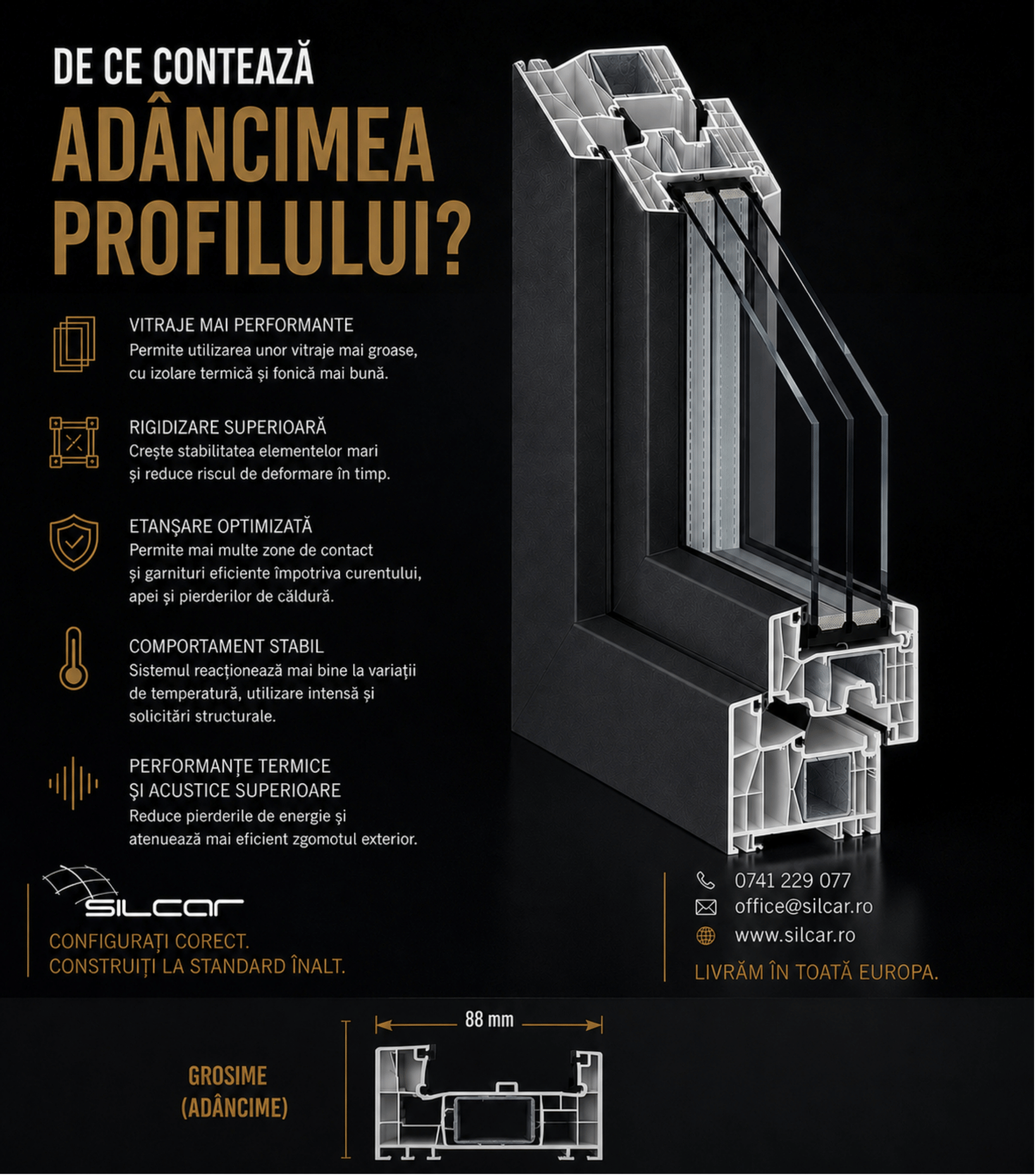

Why Does Profile Depth Matter?

Technical analysis of the relationship between system geometry, structural rigidity and energy performance in contemporary architecture

In contemporary architecture, window performance can no longer be evaluated using simplified criteria such as the number of chambers, profile thickness or an individually declared insulation value. A high-performance window is now an integrated technical system at the intersection of building physics, heat transfer, structural mechanics and control of in-service performance.

In this context, profile depth is not merely a geometric dimension. It determines the system’s ability to simultaneously manage structural loads, compatibility with large-sized glazing, infiltration control and long-term dimensional stability.

Profile Depth and the Structural Behaviour of the System

In practice, any increase in glazed surface area generates a disproportionate increase in the loads applied to the assembly. Glazing weight, wind loads, thermal amplitudes and repetitive operating cycles turn the profile into an active structural element of the building envelope.

For this reason, system depth becomes essential not only for energy performance, but also for the geometric stability of the window during operation.

Within the SILCAR portfolio, system selection is not based on the commercial logic of “deeper profile = better product”. Each system configuration results from a correlation between:

• the structural behaviour of the profile;

• glazing characteristics;

• the actual loads imposed by the project;

• the targeted energy performance;

• long-term system stability in service.

This difference in approach is fundamental.

In many situations on the market, profile depth is used as a superficial marketing argument, without a real analysis of the structural and energy implications of the system. In reality, window performance is determined by the relationship between:

• the internal geometry of the profile;

• structural moment of inertia;

• stress distribution;

• the system’s ability to maintain functional tolerances under actual operating conditions.

The Relationship Between Profile Depth and Structural Rigidity

A deeper profile allows the development of a more stable structural cross-section. From an engineering perspective, increasing the depth directly influences the moment of inertia of the profile and, consequently, its resistance to deformation.

This aspect becomes critical in the case of:

• large glazed surfaces;

• panoramic windows;

• large-sized sliding systems;

• glazed corners;

• contemporary façades with extensive glass surfaces.

In these applications, differential deformations and geometric variations can affect not only the operation of the window, but also the sealing performance and the behaviour of the entire system over time.

SILCAR Systems and the Relationship Between Profile Depth, Rigidity and Energy Performance

Within the SILCAR portfolio, the construction depth of each system is configured according to the structural and energy performance requirements of each application, whether we are referring to energy-efficient PVC systems or aluminium systems designed for large glazed surfaces and contemporary architecture.

For PVC systems such as KÖMMERLING 76 AD and SALAMANDER greenEvolution 76 MD, the 76 mm construction depth represents a balance between structural rigidity, energy efficiency and compatibility with high-performance glazing. This geometry allows the integration of optimized reinforcements and the development of configurations capable of managing structural loads exceeding those of standard residential systems.

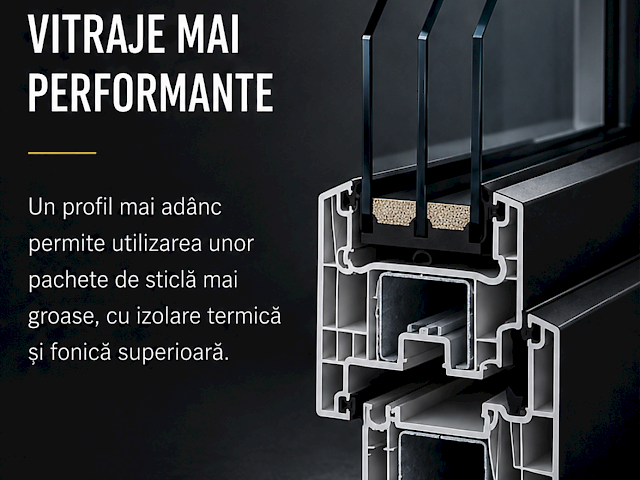

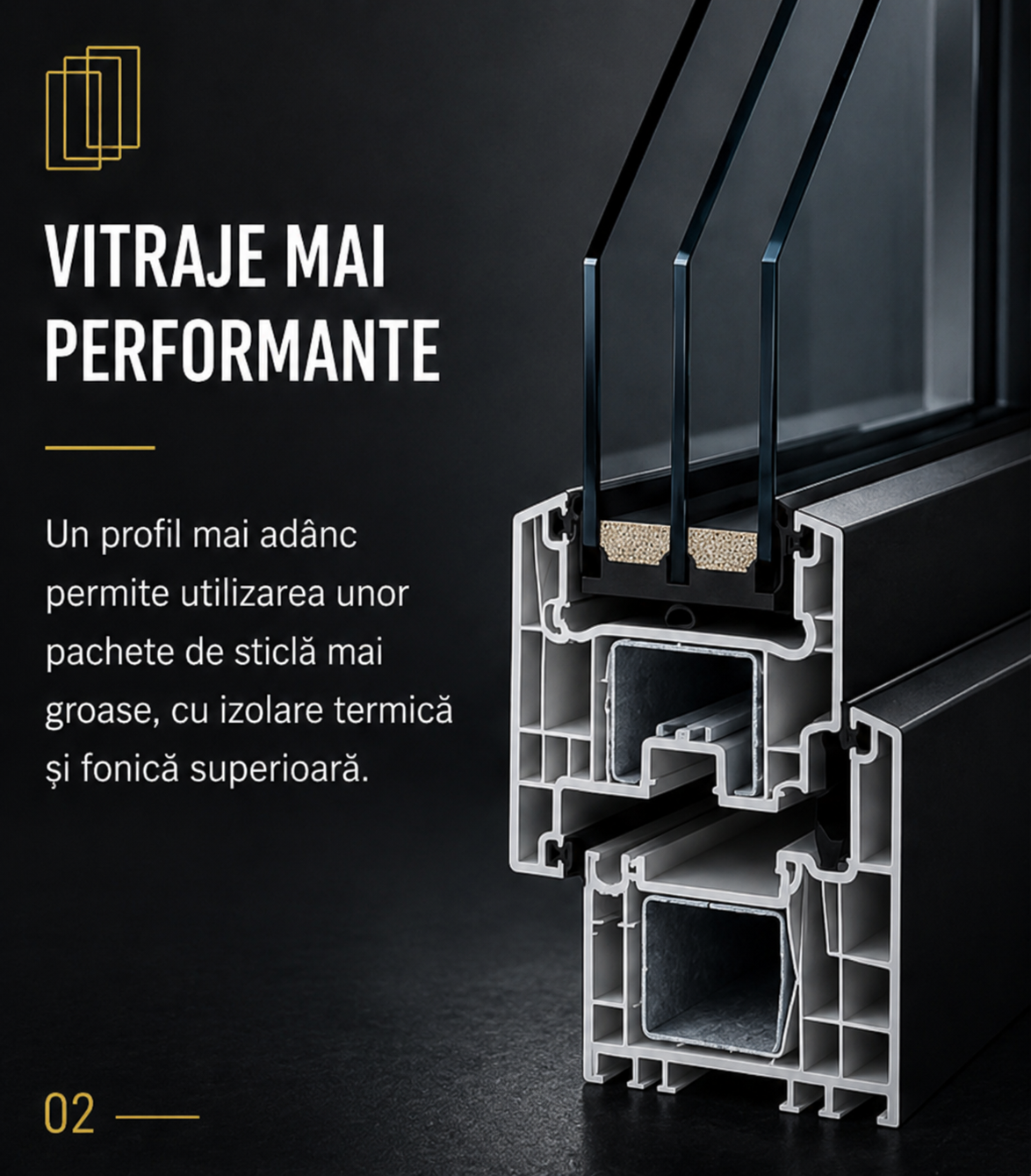

The KÖMMERLING 76 AD system allows the integration of glazing units up to 48 mm, directly influencing the thermal and acoustic performance of the assembly. In modern configurations, the profile simultaneously functions as a structural support for the glazing, a thermal control zone and a dimensional stabilization element during operation.

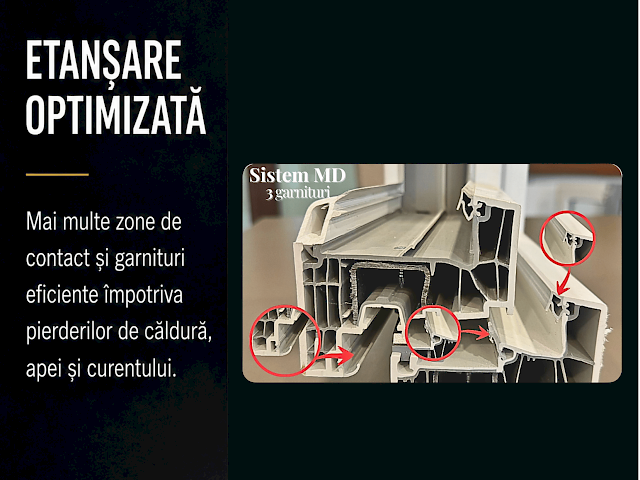

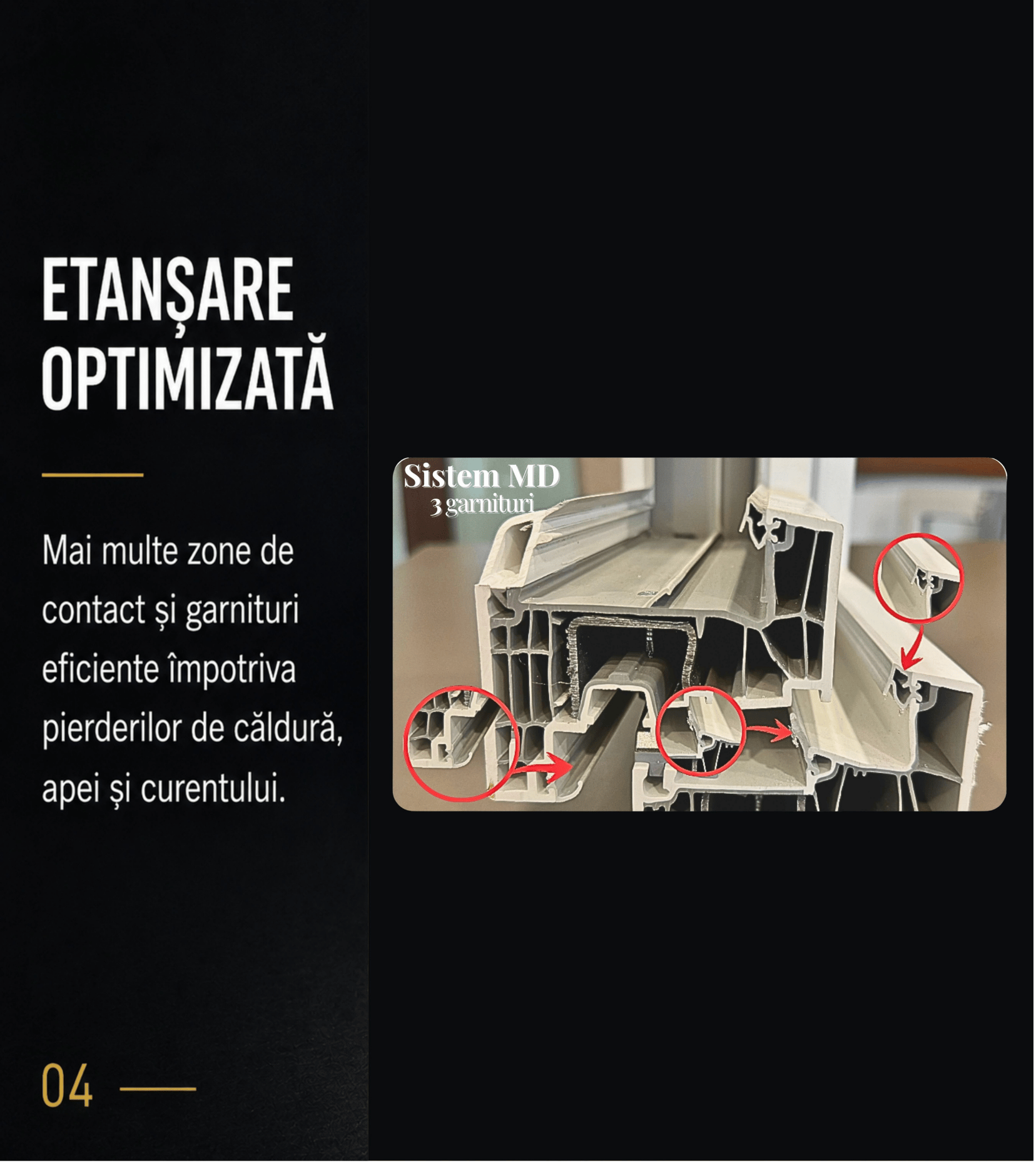

In the case of the SALAMANDER greenEvolution 76 MD system, the 6-chamber design with 3 sealing gaskets is intended to simultaneously optimize airtightness, infiltration control and acoustic performance. Acoustic performance of up to 47 dB results from the interaction between the profile geometry, the positioning of the sealing zones and the configuration of the glazing used.

In the aluminium systems segment, platforms such as Genesis 90 use profiles with a 90 mm construction depth and polyamide thermal breaks, developed for large glazed surfaces and projects with high energy-performance requirements. The system geometry allows the integration of high-performance glazing and increased assembly rigidity in the case of large openings.

In these applications, the profile no longer functions exclusively as a support for the glazing, but as an active structural element of the building envelope, simultaneously responsible for assembly rigidity, deformation control and maintaining energy performance during operation.

Actual Performance vs. Declared Performance

Under real operating conditions, the performance of a system is not defined solely by the thermal coefficient declared under laboratory conditions.

The actual difference becomes apparent when the system is simultaneously exposed to:

• thermal expansion;

• solar radiation;

• wind loads;

• glazing weight;

• repetitive operation;

• variations in temperature and humidity.

In the case of large glazed surfaces, the system begins to function more like an engineered structure than a simple window and door element.

The self-weight of the glass generates permanent loads on the support areas, welded corners and structural load-transfer points. At the same time, thermal amplitudes produce differential expansion that must be accommodated without compromising the sealing or the functionality of the hardware.

This is where the real difference between a properly engineered system and one selected exclusively on commercial criteria becomes apparent.

Aluminium Systems and the Role of Construction Depth

In the case of aluminium systems used by SILCAR for contemporary architecture, large glazed surfaces and minimalist applications, profile depth takes on an even more pronounced structural function.

Unlike PVC, where thermal performance is generated predominantly through internal chambers and reinforcements, aluminium systems must simultaneously address:

• structural rigidity;

• thermal separation between interior and exterior;

• dimensional stability;

• control of structural deformation;

• integration of high-mass glazing units.

For this reason, premium aluminium systems used for large openings or glazed façades generally feature significantly greater construction depths than those found in standard residential applications.

These geometries allow:

• integration of complex thermal-break solutions;

• controlled stress distribution;

• stabilization of the assembly under high loads;

• compatibility with large architectural glazing units.

In contemporary architecture, where transparency has become part of the building’s structural language, the profile is no longer merely a support for the glass. It becomes an active element controlling the behaviour of the entire building envelope.

Correct System Configuration

This is why the analysis of a high-performance system cannot be reduced to the simplified idea of “deeper profile”.

Greater depth without:

• correct geometry;

• adequate reinforcement;

• component compatibility;

• configuration correlated with the project

can produce inferior results compared with a technically balanced system.

At SILCAR, system selection is based on the predictable behaviour of the complete assembly under real operating conditions.

Glazing dimensions, building orientation, thermal amplitudes, structural load levels and energy-performance objectives are analysed together, rather than separately.

In practice, actual performance is not the result of a single technical specification. It emerges from the way each component contributes to the stability, efficiency and coherent operation of the entire system over time.

That is the difference between a correctly configured window and one that is simply sold correctly.
